Purpose
This guide explains how to configure an Ericsson Enterprise Wireless Solutions (Cradlepoint) access point for Cloud4Wi via NetCloud.
Please note that the images in this article may contain outdated configuration data. Therefore, check the "Parameters for the Solution" section at the bottom of the page, as it contains the most up-to-date information.
Prerequisites
To successfully integrate an Ericsson access point with the solution, ensure that:
- The device is connected to the Internet.
- WAN and LAN interfaces are properly configured.
Create SSID

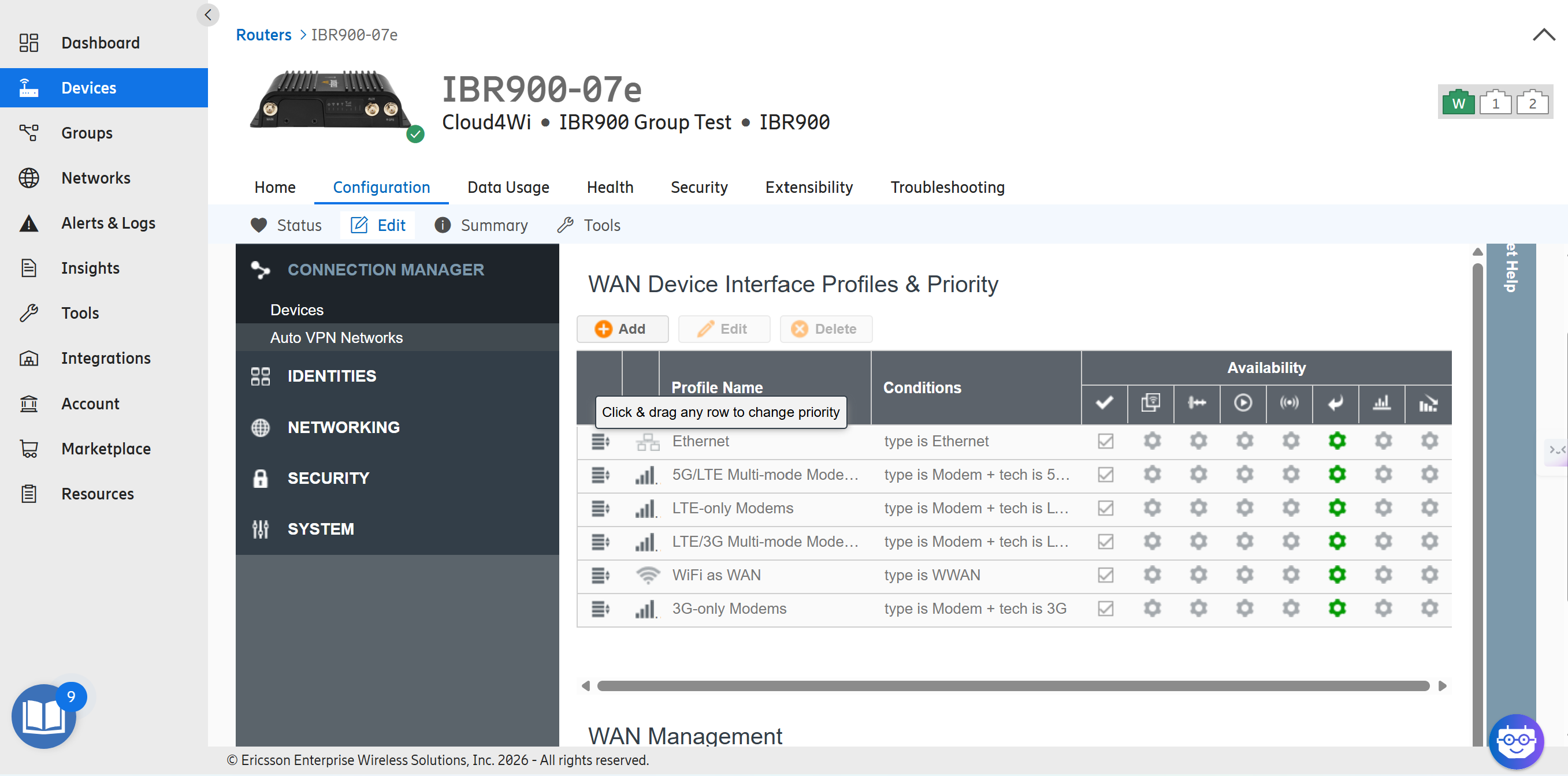

Once logged into your NetCloud account, select the router you need to configure and go to the "Configuration" tab.
In this guide, we configured the IBR900 AP purely as an example; however, these instructions apply to all ERICSSON models.
Example:
- Log into your netcloud account using your credentials.

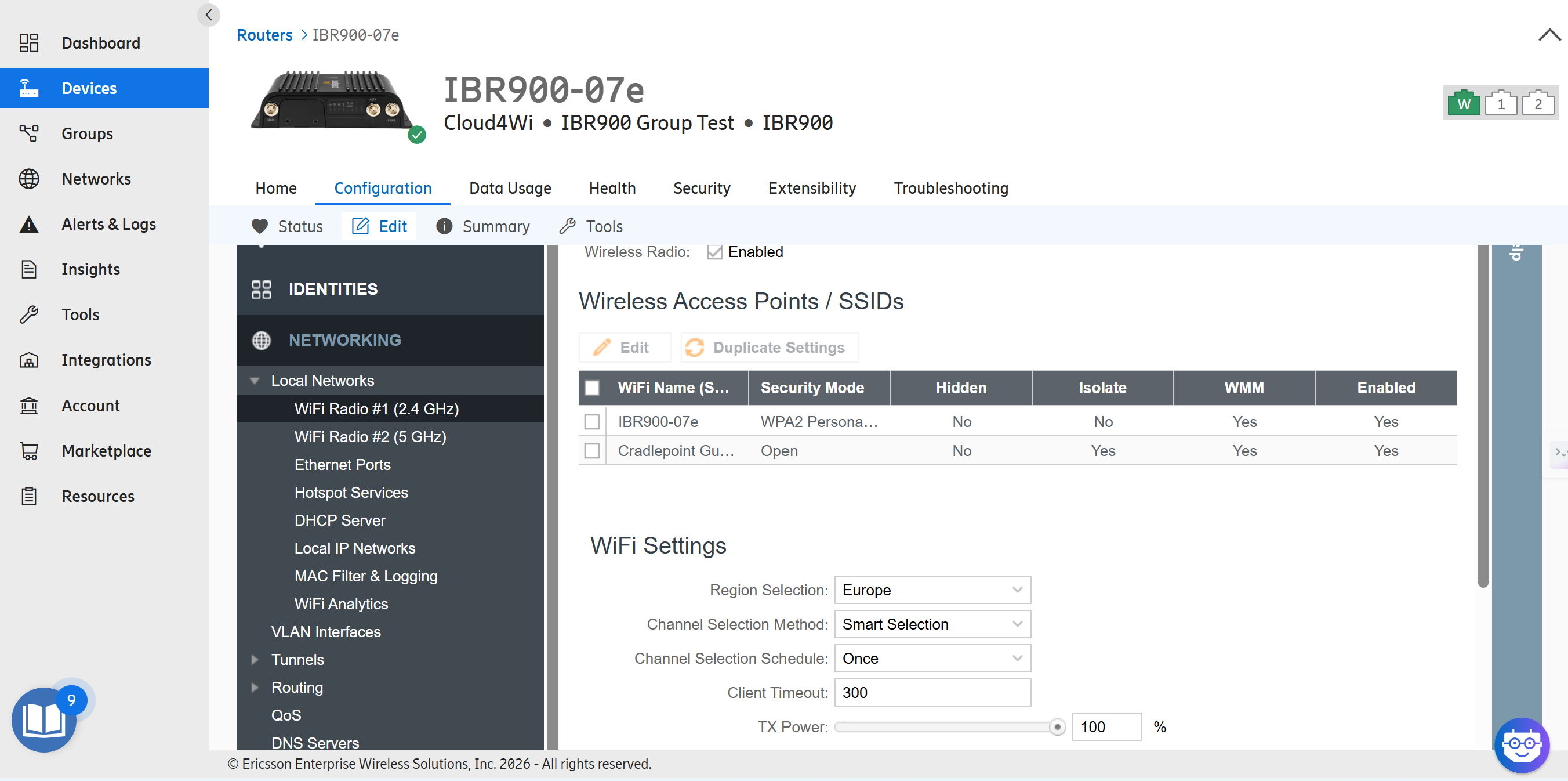

- Navigate to Networking > Local Network and configure the SSID for each WiFi radio.
- Create and edit the SSID:

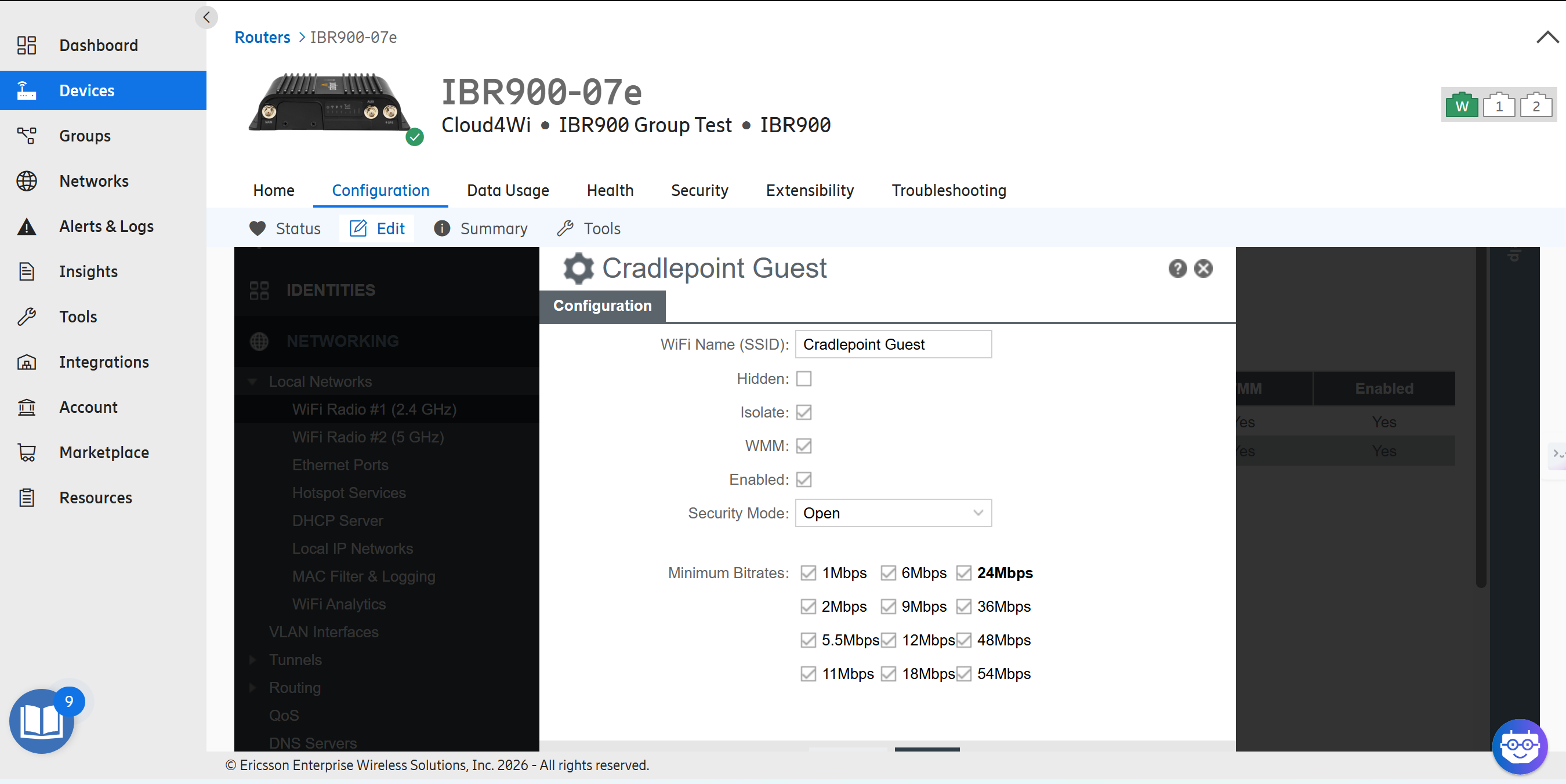

- From here, you can rename the SSID and set the Security Mode as Open. Save this setting by clicking on Submit.
Configure the Hotspot Local network

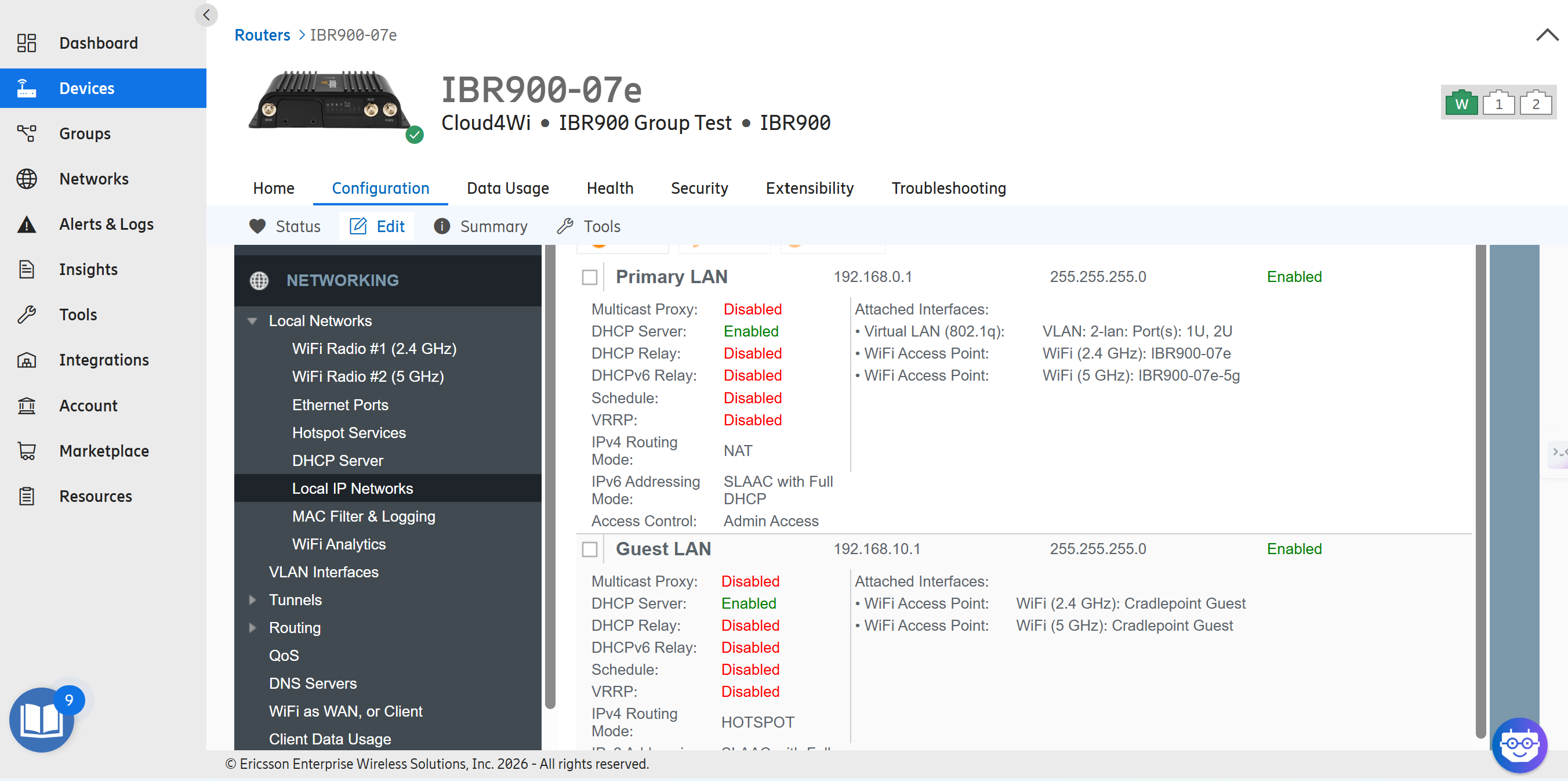

- Navigate to Networking / Local IP Networks and modify the existing Guest LAN o create a new one:
Please review the following sections:
-
-

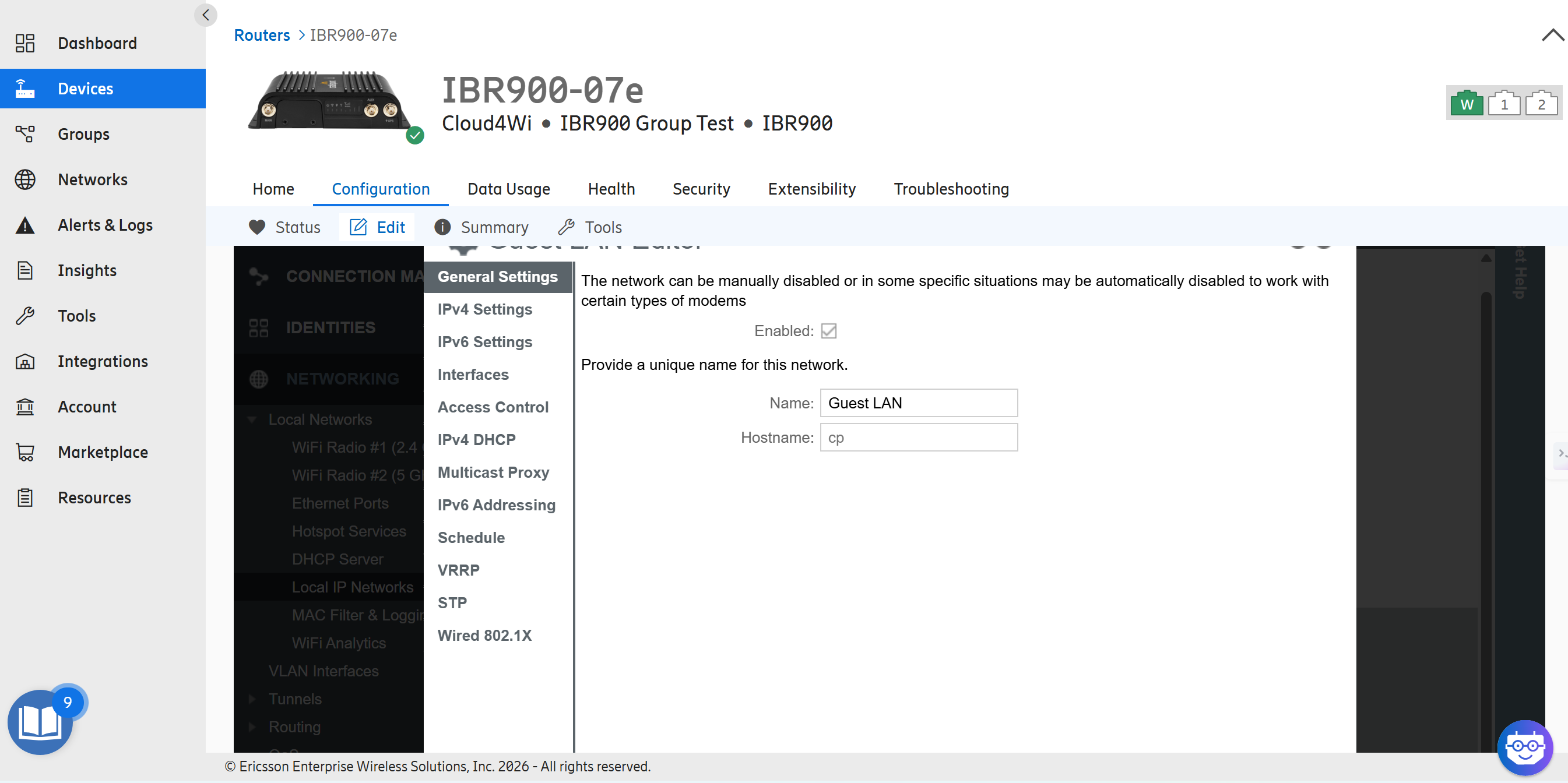

General Settings: Assign a name for easy identification.
-

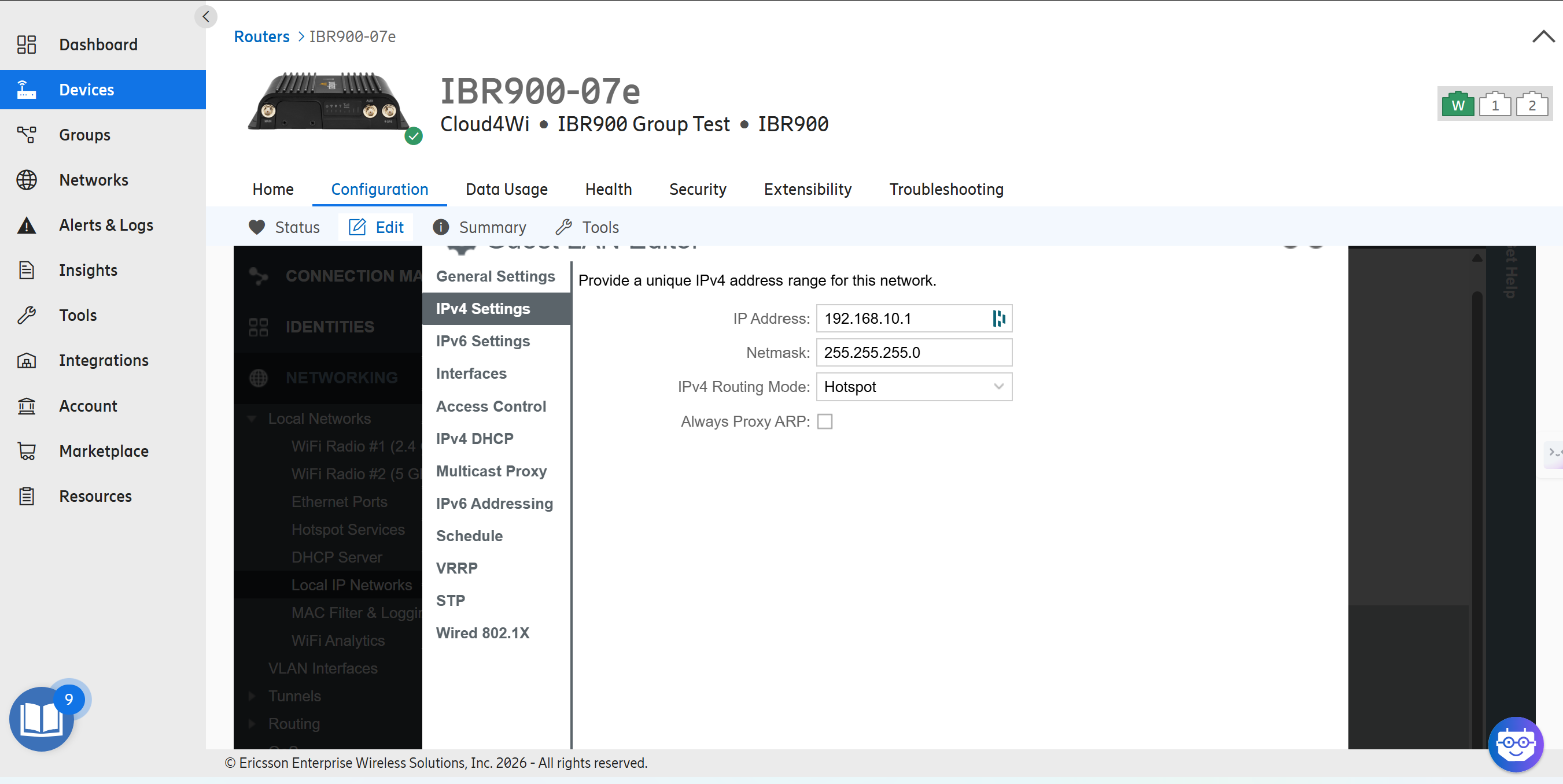

IPv4 Settings: Set the IP address and netmask for your network, then select "Hotspot" from the drop-down menu for IP routing mode.
-

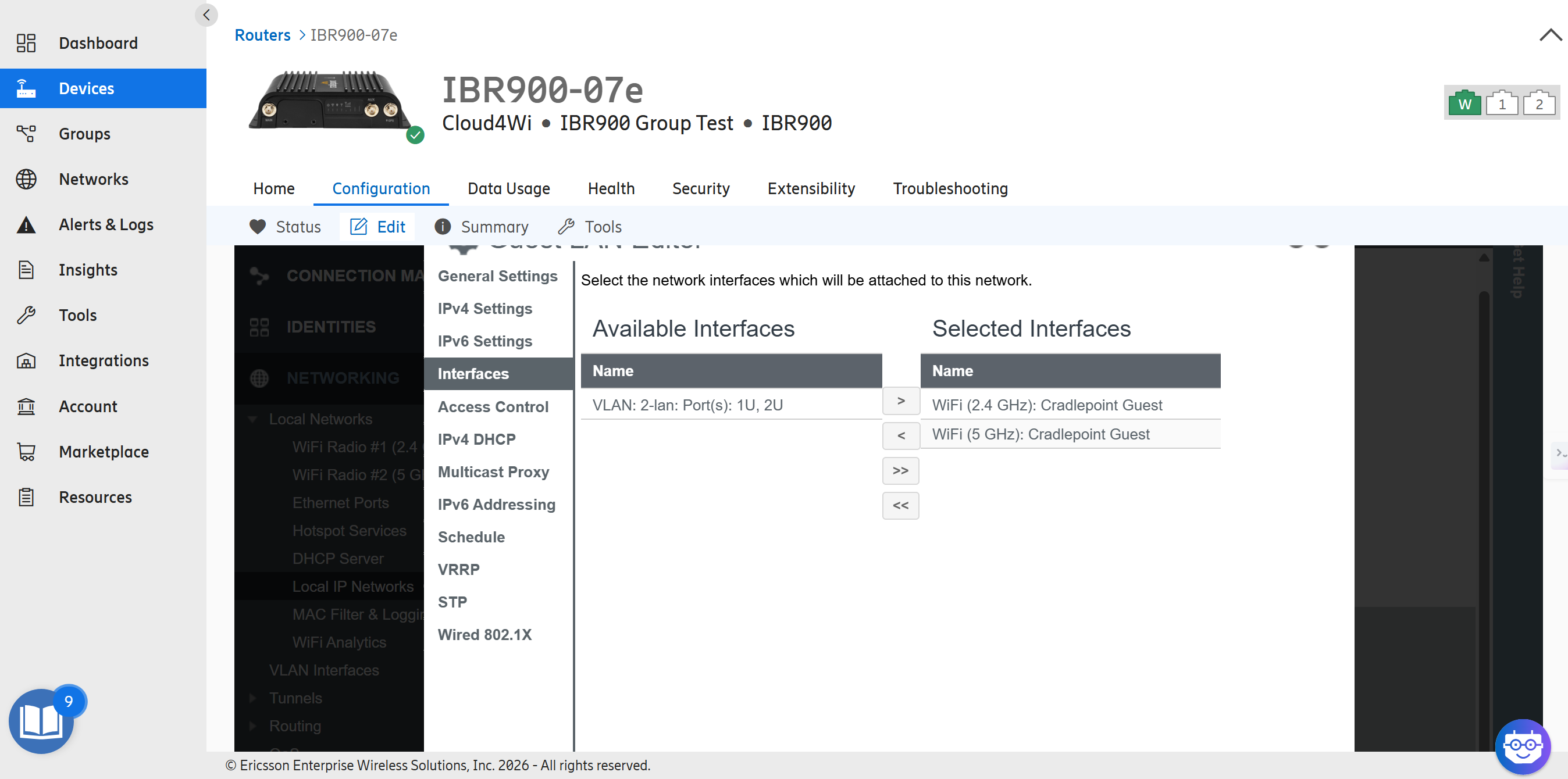

Interfaces: From here you can add the SSID you created earlier as available for hotspot mode.
-
Make any additional necessary changes for your network and click "Save and Commit" to apply all settings.
Create Hotspot Service

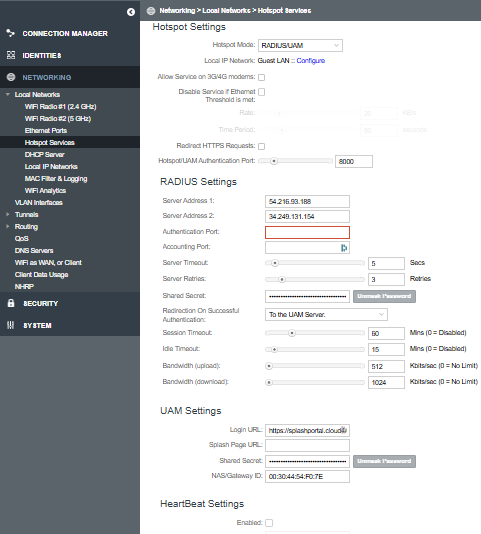

Navigate Networking / Local Networks /Hotspot services and configure as following:
- Click Apply to save these settings. Scroll down to Allowed hosts/domains prior to Authentication and enter the domain names as required. Ericsson supports “ *.domain.com” format for walled garden entries.
- Add *.cloud4wi.com
-
General Settings: Assign a name for easy identification.
Walled garden
As already mentioned, it is possible to set this list in the Allowed hosts/domains prior to Authentication section.
You can learn more about that by reading the following articles:
- Walled garden for the Social Login (websites/domains to open)
- Walled garden for PayPal feature (websites/domains to open)
Entering the device details into the Cloud4Wi Dashboard
In order to add a new access point to the system, please see How to add an access point.
If you are looking for more general information about how to configure your Access point in Cloud4Wi please read the Quick-start guide.
Parameters for the Solution
The parameters to use to integrate the device with the Solution are described in the following document:
UAM Settings:
Login Url:
Cloud4Wi support a single URL for all customers and locations, to simply the network configuration and maintenance
- Unified Splash Page URL: https://splashportal.cloud4wi.com/
In order to support advanced capabilities such as Fallback experience and Access Point Mapping, we strongly suggest to use your dedicated Splash Page URL that you can find in the Cloud4Wi dashboard in Manage > Preferences > WiFi service
Notes: The dedicated Splash Page URL is being rolled out gradually. If you haven't seen it appear in your dashboard yet, that's why! Check back later, or contact our support team to request a notification as soon as it's enabled for your account.
Splash Page URL: leave empty
Shared secret: leave empty
NAS/Gateway ID: Equal to AP Mac Address
| Parameter | Subscriptions | Trials |
|---|---|---|
| Primary IP Address | 54.216.93.188 | 54.216.93.188 |
| Secondary IP Address | 34.249.131.154 | 34.249.131.154 |
| Auth Port (UDP) | Custom Port (Check Dashboard) | 1812 |
| Acct Port (UDP) | Custom Port (Check Dashboard) | 1813 |
| Shared Secret | Custom Secret (Check Dashboard) | Provided in Onboarding email |
