Cloud4Wi can verify that an end-user has access to the phone number provided during registration by sending a temporary confirmation code via SMS. This verification method is supported for both Username/password and Click-through sign-up flows.
SMS confirmation is separate from the automatic phone number format validation performed by native Splash Portal forms. Format validation checks whether an entered number is valid for the selected country when the user tries to continue or submit; it does not establish that the user can receive messages at that number. SMS confirmation requires the user to enter a code delivered to the supplied phone number.
Configuration and setup
Go to Guest Wi-Fi → Setup → Login Profiles and open the Login Profile used for the Location. Under Advanced → Access Control → Primary Sign-Up Verification, select Code via text message.
Other verification methods may be available depending on the primary sign-up method. For their configuration and compatibility requirements, see Login Profile configuration and options.
Phone number requirement and applicability
- Phone number is required: When this SMS code verification method is enabled, the Phone number field is mandatory even if it was not selected among the other mandatory registration fields. Users must provide a number that can receive the SMS confirmation code.
- Social Login: This Primary Sign-Up Verification method does not apply to users authenticating through an external identity provider. Social Login has its own verification settings.
Verification flow

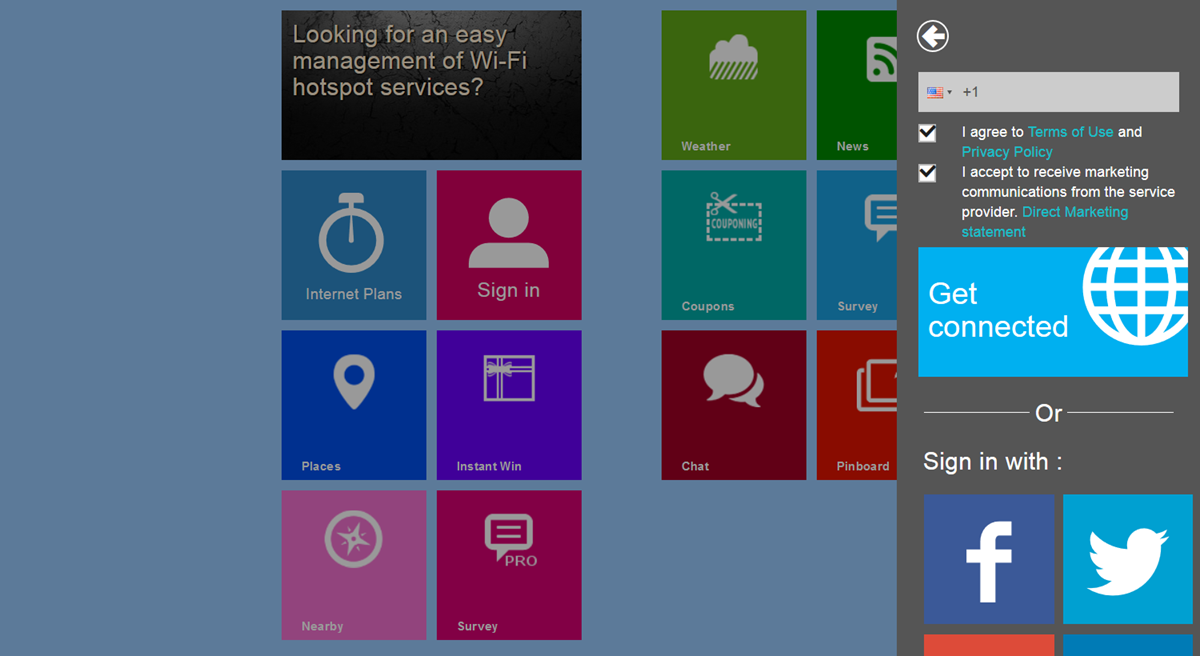

- Form submission: The user completes the required registration fields, including the Phone number, and submits the Splash Portal form.

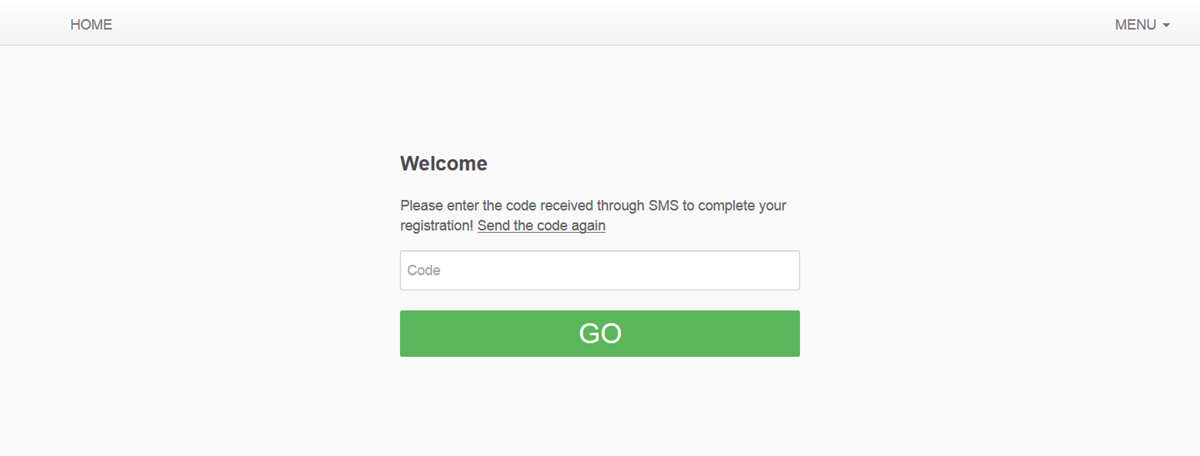

- Code delivery: Cloud4Wi sends an SMS containing a temporary validation code and displays the code entry form.

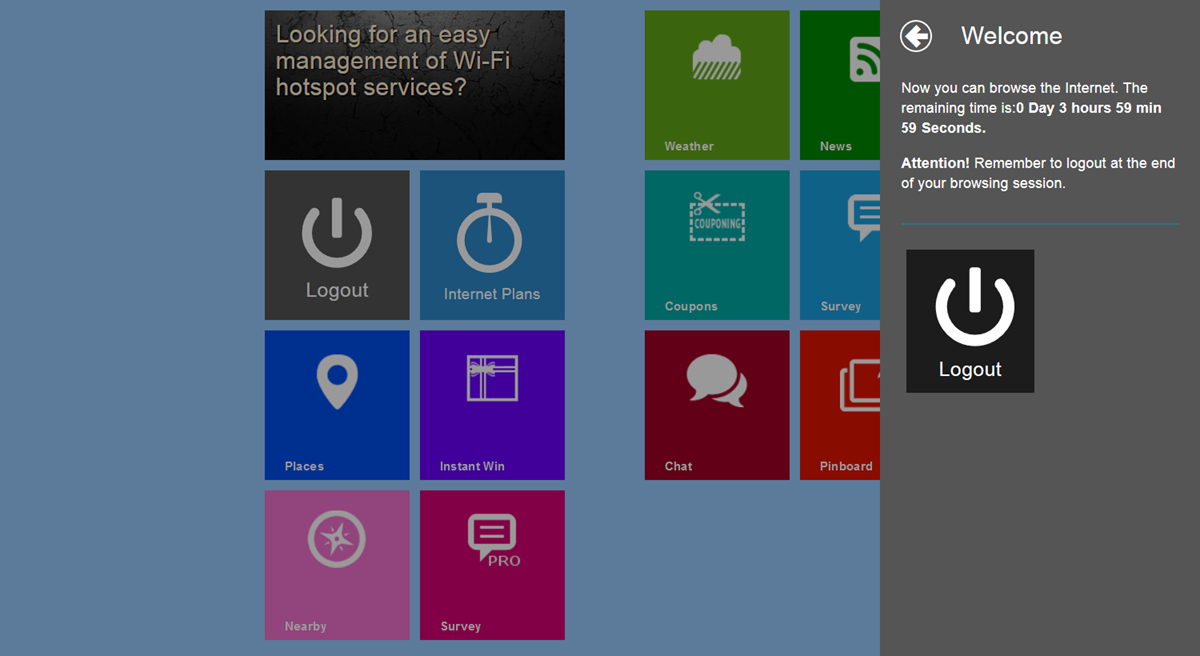

- Code confirmation: If the user enters the correct code, verification is completed and access is granted. If the code is incorrect, the Splash Page displays an invalid-code error and allows another attempt.
Resending the code and interrupted sessions
To limit unnecessary SMS traffic and repeated delivery requests, the confirmation flow applies the following safeguards:
- Resend limit: If the SMS does not arrive, the user can select Send the code again. This action is limited to one use per session.
- Returning after closing the browser: If the user closes the browser before entering the code, opening the Splash Page again prompts them to re-enter their phone number and return to the verification form. Cloud4Wi does not automatically send another SMS on that return. If the user no longer has the original message, they must request another code using Send the code again.
